The board can be developed with Analog Devices IDE or with ucLinux.

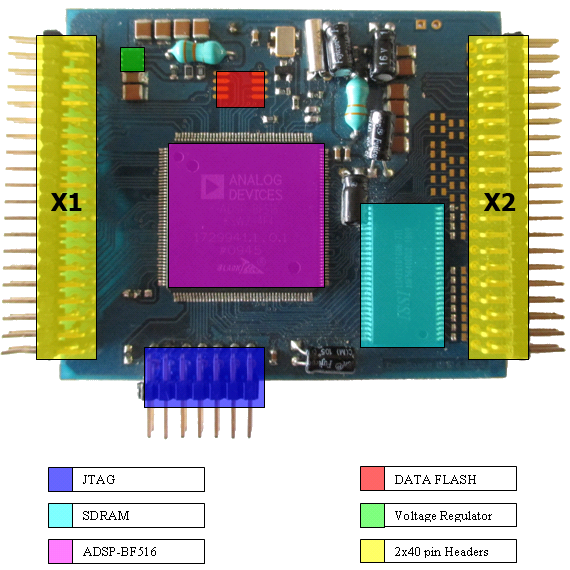

400 MHz (800 MMACS) Analog Devices Blackfin ADSP-BF516 Processor
SDRAM IS42S16160B 4M x 16 x 4 Banks, 166 MHz
MCP130 Microcontroller Supervisory Circuit
FAN2012 1.5 A, Low Voltage Buck Regulator
Standard JTAG Connector
SPI FLASH AT45DB161B

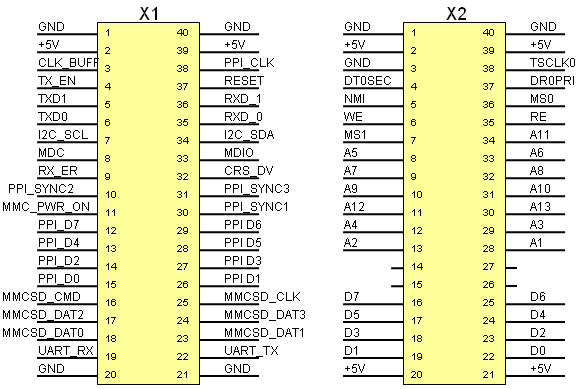

2 External I/O Headers (40-pin - 2 x 20 x 0.1")
Board Dimensions: 10x10
| Feature | MCU | PINOUT |
|---|---|---|
| On-Chip Memory | 2 | 2 |
| UART | 3 | 3 |
| SPI | 3 | 3 |
| I2C | 2 | 2 |
| PPI | 2 | 2 |
| USB | 1 host, 1 device | 1 host, 1 device |
| SD/MMC | 1 - with SDHC support | 1 - with SDHC support |
| Integrated ADC | 12 channel 10 bit | 12 channel 10 bit |
| On chip real time clock | yes | yes | On chip watch-dog timer | yes | yes |
| Power Requirements | 2 | 2 |
| Power Requirements | 2 | 2 |

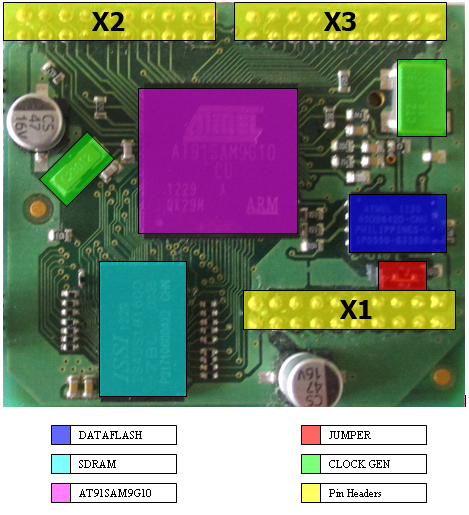

The board have 32 MB SDRAM and Atmel Data Flash on SPI bus (variable size). With microSD Card support, extended with modern SDHC, operating at up to 25MHz the board is tested with 1GB, 2GB, 4GB and 8GB cards. The board is build around AT91SAM9G10, based on ARM926EJ-S™ ARM® Thumb® Processor with:
293 MIPS at 266 MHz
DSP Instruction Extensions
ARM Jazelle® Technology for Java® Acceleration
microSD Card Support tested with 1GB, 2GB, 4GB and 8GB cards
32 MB External SDRAM
Atmel Data Flash on SPI bus (variable size)

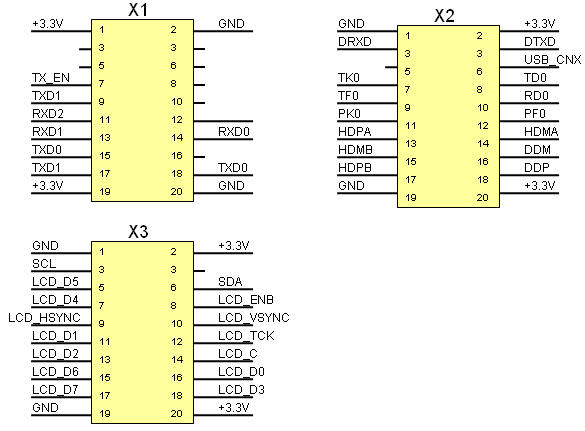

| Feature | MCU | PINOUT |
|---|---|---|
| On-Chip Memory | 16kB RAM and 32kB ROM | 16kB RAM and 32kB ROM |
| UART | 3 | 3 |
| SPI | 1 (in use) | 1 (in use) |
| I2C/TWI | 1 | 1 |
| PPI | 2 | 2 |
| USB Host | 2 | 2 |
| USB Device | 1 | 1 |
| SD/MMC | 1 - with SDHC support | 1 - with SDHC support |
| I2S | 1 | 1 |
| On chip watch-dog timer | Yes | Yes |
| LCD Display Support | Yes, limited to STN | Yes, limited to STN |
| Power Requirements | 3.3V | 3.3V |
266 MHz, ARM926-based microprocessor AT91SAM9G10 by Atmel
Slot for micro SD Card
64-megabit DataFlash
256-MBIT SYNCHRONOUS DRAM
Dimensions: 10x10

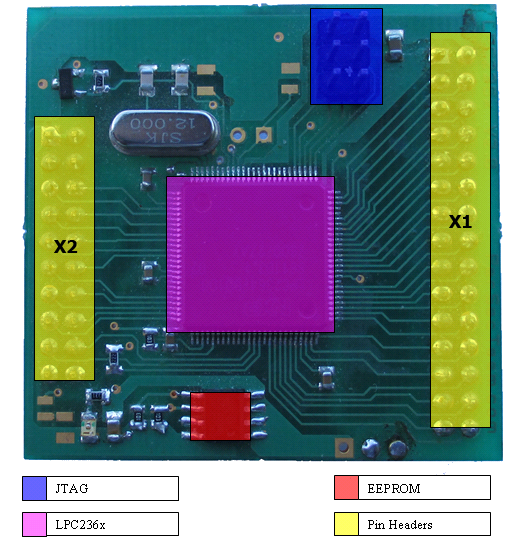

The board is based around the LPC 236x communication microprocessor for multi-purpose serial communication applications. On the board there are two oscillators – one 32,768 khz for the RTC and one 12mhz used for the core clock. On-board 256K Serial EEPROM connected with the microcontroller via I2C.
72 MHz ARM7TDMI-S processor LPC2364/65/66/67/68
256K I2C Serial EEPROM
Standard JTAG Connector
MCP130 Microcontroller Supervisory Circuit
Dimensions: 10x10

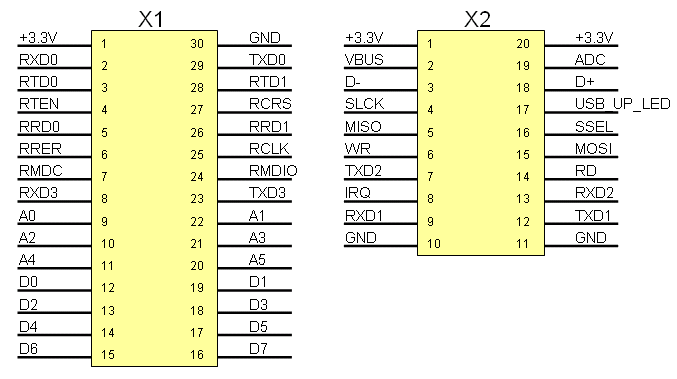

| Feature | MCU | PINOUT |
|---|---|---|
| On-Chip Memory | 128kB FLASH, 34kB SRAM | 128kB FLASH, 34kB SRAM |
| UART | 4 | 4 |
| SPI | 3 | 3 |
| I2C | 3 | 3 |
| I2C | 1 | 1 |
| CAN | 2 | 2 |
| USB | 1 device | 1 device |
| SD/MMC | NO | NO |
| Integrated ADC | 12 channel 10 bit | 12 channel 10 bit |
| On chip real time clock | yes | yes | On chip watch-dog timer | yes | yes |
| On chip Tiemrs/Counters | yes | yes |
| Ethernet | 1 in RMII Mode | 1 in RMII Mode |
| Power Requirements | 3.3V | 3.3V |
